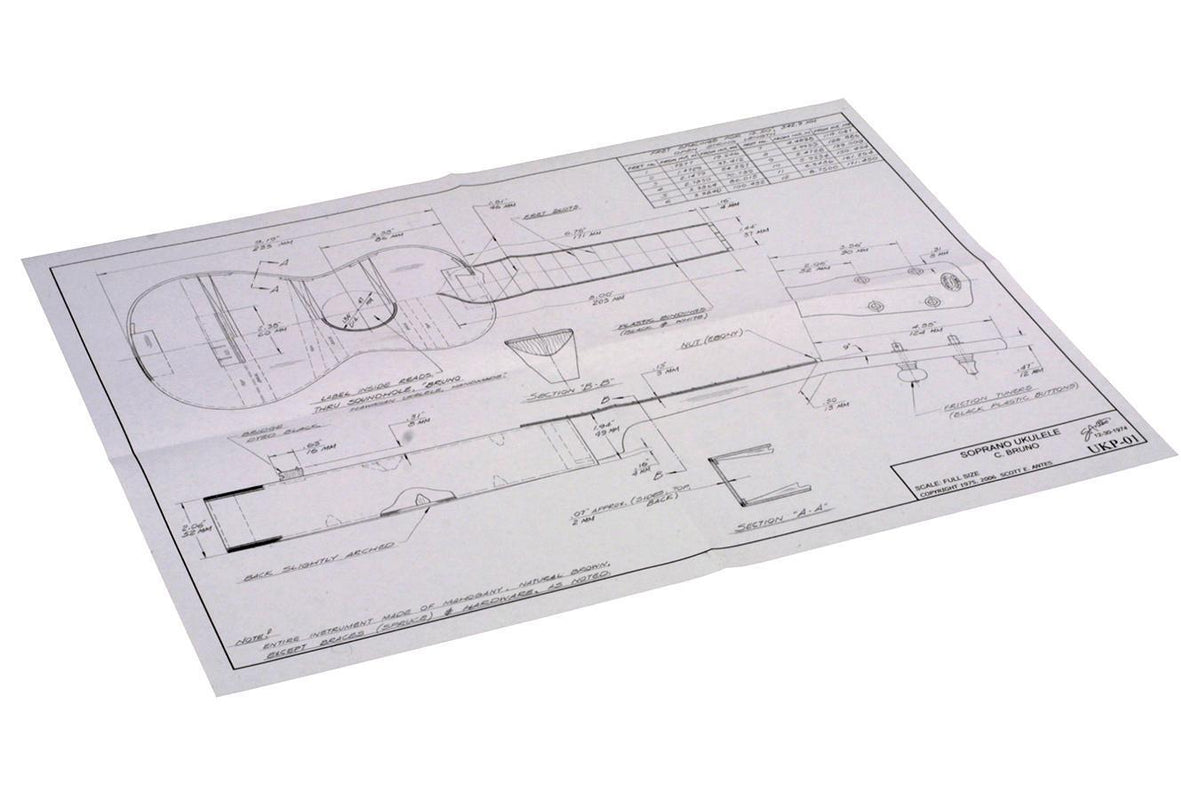

Soprano Ukulele Plan

Just what I wanted to figure out how to properly do an OM guitar with a cutaway especially at the neck block. Thanks. Peace.

Critical dimensions not given
1- Pin block angles
When looking at plan view
1-tuning pin location from frame
2-tuning pin spacing ie. G# to A
3-same with hitch pins
4-pin offset between the course strings

Received the blueprint making a dulcimer and looking forward to this journey. Thanks

I’ve not started building yet but the plans look sufficient.

It is a little premature to review dreadnought plans. I have some Cocobolo and killer soundboard wood sized for a dreadnought These plans look pretty spot on from what I've used via Stewmac's herringbone plans (basically same plans), but are $11 less expensive. I just need the bracing layout as a starting point. I have good side bending forms and the molds for a dreadnought. I will vary bridge, brace shape/scallop, headstock shape, etc. I will go with a Martin scale neck/fingerboard fret slotting. I have some other guitars in progress and haven't got to this guitar yet. It's been a while since I've built a dreadnought styled guitar.
