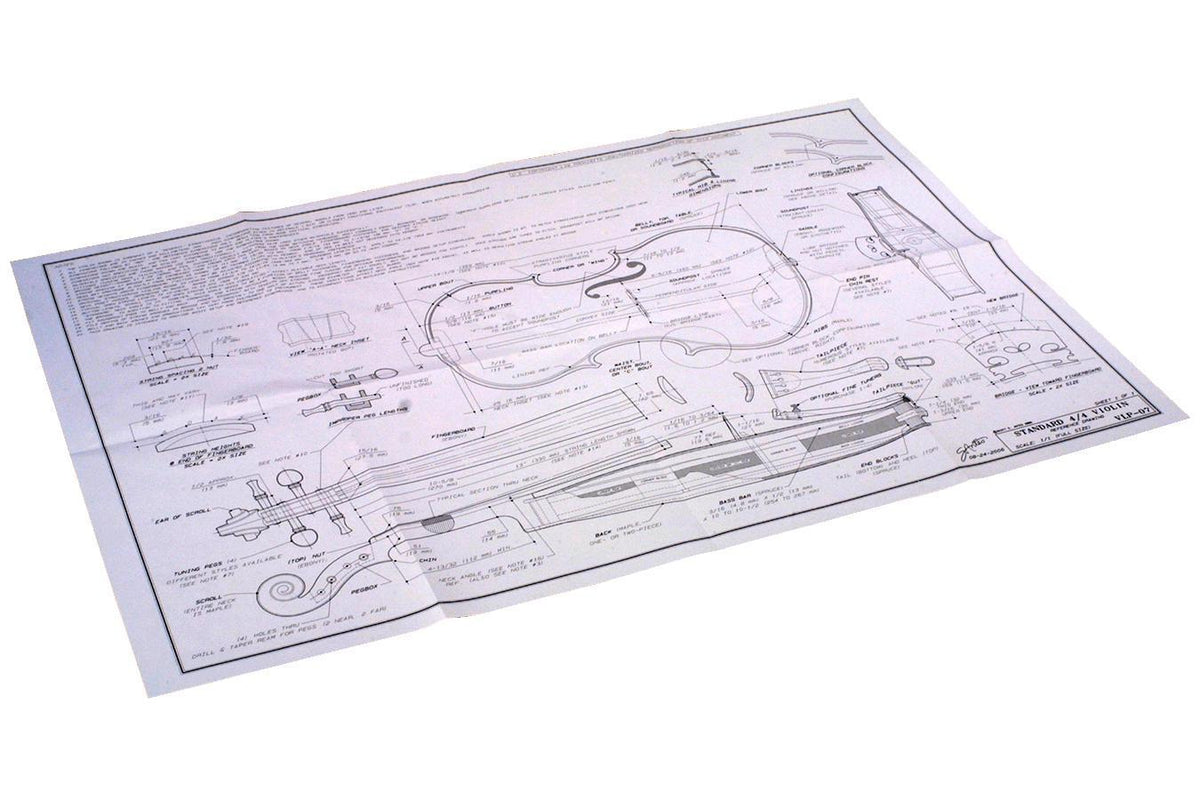

Standard 4/4 Size Violin Plan

The plans are suggested by the SIMSCAL course/class I am currently in. They are well done, have everything you need to build your OM sized guitar

Just what I wanted to figure out how to properly do an OM guitar with a cutaway especially at the neck block. Thanks. Peace.

Critical dimensions not given
1- Pin block angles
When looking at plan view
1-tuning pin location from frame
2-tuning pin spacing ie. G# to A
3-same with hitch pins
4-pin offset between the course strings

Received the blueprint making a dulcimer and looking forward to this journey. Thanks

I’ve not started building yet but the plans look sufficient.
